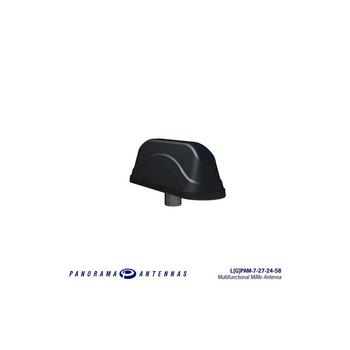

PANORAMA ANTENNAS a LGAM-7-27-24-58 - Aerial - navigation, cellular, Wi-Fi - 5 dBi - omni-directional - panel mountable
You have to log in to shop/see prices.
|
|
PANORAMA ANTENNAS a LGAM-7-27-24-58 - Aerial - navigation, cellular, Wi-Fi - 5 dBi - omni-directional - panel mountable
|
Description
Specifications
This high-performance antenna offers multiple antenna functions for applications where a cost-effective, efficient and robust antenna is essential. It is ideal for vending machines, payment terminals and other M2M applications.
The L[G]AM consists of 2x2 MiMo function for 2G/3G/4G/5G covering 698-3800MHz, 2x2 MiMo function for 2.4/5GHz WiFi and an optional active antenna for GPS/GLONASS/Galileo/BeiDou with 26dB gain LNA for high-quality positioning and filtering. The antenna maintains a high level of performance even when mounted on a non-metallic surface.
| Antenna gain level (max) | 26 dBi |
| Frequency band | 0.698-0.960/1.71-2.17/2.5-3.8 GHz |
| Impedance | 50 Ω |
| Antenna type | Omni-directional antenna |
| Antenna connector type | SMA |
| Polarization | Vertical polarization |
| Voltage Standing Wave Ratio (VSWR) | <2:1 ± 4MHz |
| Housing material | Acrylonitrile styrene acrylate (ASA) |
| Product colour | Black |
| Power consumption (max) | 25 W |
| Operating temperature (T-T) | -40 - 80 °C |
| Width | 44 mm |
| Depth | 150 mm |
| Height | 50 mm |
| Quantity | 1 |
