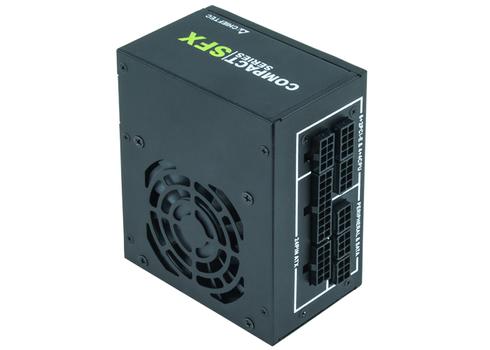

CHIEFTEC COMPACT SERIES 550W POWER SUPPLY CSN-550C CPNT
You have to log in to shop/see prices.
|
|
CHIEFTEC COMPACT SERIES 550W POWER SUPPLY CSN-550C CPNT
Chieftec Compact Series CSN-550C - Virtalähde (sisäinen) - ATX12V 2.3/ SFX12V - 80 PLUS Gold - Vaihtovirta 100-240 V - 550 watti(a) - aktiivinen PFC - musta
-
Power
550W
-
80 PLUS certification
80 PLUS Gold
|
Description
Specifications
Expert Reviews
Chieftec CSN-550C. Total power: 550 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: PS/2, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Fan diameter: 8 cm, Number of fans: 1 fan(s). Width: 125 mm, Depth: 100 mm, Height: 64 mm
| Total power | 550 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 6 A |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 90 W |
| Combined power (+5V) | 90 W |
| Max output current (+3.3V) | 18 A |
| Max output current (+12V1) | 45.8 A |
| Max output current (+5V) | 15 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 90% |
| Power protection features | Over current, Over voltage, Overheating, Overload, Short circuit, Under voltage |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 4 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| PCI Express power connectors (6+2 pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| ATX power connector (20+4 pin) | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Fully-Modular |
| Purpose | PC |
| Power supply unit (PSU) form factor | PS/2 |
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 2.3 |
| Product colour | Black |
| Fan diameter | 8 cm |
| Number of fans | 1 fan(s) |
| Width | 125 mm |
| Depth | 100 mm |
| Height | 64 mm |
| Harmonized System (HS) code | 84733020 |
