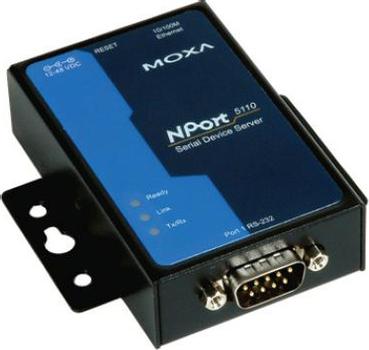

MOXA NPort sarjaporttiserveri, 1 portti(DB9u), RS-232, RJ45
Hinnat näkyvät vain verkkokauppaan kirjautuneille käyttäjille.
|
MOXA NPort sarjaporttiserveri, 1 portti(DB9u), RS-232, RJ45
|
NPort 5110 Series
1-port RS-232 serial device servers
Features and Benefits
Real COM/TTY drivers for Windows and Linux
Standard TCP/IP interface and versatile operation modes
Easy-to-use Windows utility for configuring multiple device servers
Built-in 15 KV ESD protection for all serial signals
SNMP MIB-II for network management
Configure by Telnet or web browser
Overview
NPort® 5110 device servers are designed to make serial devices network-ready in an instant. The small size of the servers makes them ideal for connecting devices such as card readers and payment terminals to an IP-based Ethernet LAN. Use the NPort® 5110 device servers to give your PC software direct access to serial devices from anywhere on the network.
• LAN Interface |
Number of Ports |
1 |
Speed |
10/100 Mbps |
Connector(s) |
8-pin RJ45 |
Magnetic Isolation Protection |
1.5 KV built-in |
• Serial Interface |
Serial Standards |
RS-232 |
Number of Ports |
1 |
Connector(s) |
DB9 male |
Serial Line Protection |
15 KV ESD protection for all signals |
RS-485 Data Direction Control |
ADDC® (automatic data direction control) |
• Serial Communication Parameters |
Data Bits |
5, 6, 7, 8 |
Stop Bits |
1, 1.5, 2 |
Parity |
None, Even, Odd, Space, Mark |
Flow Control |
RTS/CTS and DTR/DSR (RS-232 only), XON/XOFF |
Baudrate |
110 bps to 230.4 Kbps |
• Serial Signals |
RS-232 |
TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
• Software |
Network Protocols |
ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP, HTTP, SMTP |
Driver Support |
Windows Real COM driver (for Windows 95, 98, ME, NT, 2000, XP, 2003, Vista, XP x64, 2003 x64, Vista x64), Linux Real TTY driver, Fixed TTY driver (for SCO Unix, SCO OpenServer, UnixWare 7, UnixWare 2.1, SVR 4.2, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i) |
Configuration Options |
Web Console, Serial Console, Telnet Console, Windows Utility |
• Physical Characteristics |
Enclosure |
Aluminum (1 mm) |
Weight |
580 g |
Dimensions |
Without ears: 52 x 80 x 22 mm (2.05 x 3.15 x 0.87 in) With ears: 75.2 x 80 x 22 mm (2.96 x 3.15 x 0.87 in) |
• Environmental Limits |
Operating Temperature |
NPort 5110: 0 to 55°C (32 to 131°F) NPort 5110-T: -40 to 75°C (-40 to 167°F) |
Operating Humidity |
5 to 95% RH |
Storage Temperature |
-20 to 85°C (-4 to 185°F) |
• Power Requirements |
Input Voltage |
12 to 48 VDC |
Power Consumption |
128.7 mA @ 12 V, 72 mA @ 24 V |
Power Line Protection |
1 KV burst (EN61000-4-4: EFT/B), 0.5 KV surge (EN61000-4-5) |
• Regulatory Approvals |
Safety |
UL (UL60950-1), CUL, TÜV (EN60950-1) |
EMC |
CE (EN55022 Class A, EN55024), FCC Part 15 Subpart B Class A |
• Reliability |
Automatic Reboot Trigger |
Built-in WDT (watchdog timer) |
MTBF (meantime between failures) |
279122 hrs |
• Warranty |
Warranty Period |
5 years |
|
Model No. |
Description |
|
|
|
|
|
NPort 5110-US |
1-port RS-232 Device Server, 110 VAC, US plug |
|
|
|
|
|
NPort 5110-EU |
1-port RS-232 Device Server, 240 VAC, Euro plug |
|
|
|
|
|
NPort 5110-UK |
1-port RS-232 Device Server, 240 VAC, UK plug |
|
|
|
|
|
NPort 5110-JP |
1-port RS-232 Device Server, 100 VAC, US plug |
|
|
|
|
|
NPort 5110-SAA |
1-port RS-232 Device Server, 240 VAC, Australia plug |
|
|
|
|
|
NPort 5110-CN |
1-port RS-232 Device Server, 240 VAC, US plug |
|
|
|
|
Tekniset tiedot |
---|
Sarjaportteja | 1 |
Sarjaliitännän tyyppi | RS-232 |
Eristys | 1,5 kV |
Ethernet LAN data-siirtonopeudet | 10,100 Mbit/s |
Liitettävyys |
---|
Ethernet LAN (RJ-45)-portit | 1 |
Virranhallinta |
---|
Tulojännite | 12 - 48 |
Hallintaominaisuudet |
---|
Hallintaprotokolla | SNMP v1 |
Protokollat |
---|
Tuetut verkkoprotokollat | ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, DNS,HTTP, SMTP, IGMP v1/2 |
Paino ja mitat |
---|
Mitat (LxSxK) | 52 x 80 x 22 mm |
Paino | 340 g |
Ympäristöolosuhteet |
---|
Käyttölämpötila | 0 - 60 °C |
Varastointilämpötila | -40 - 85 °C |
Suhteellinen kosteusalue | 5 - 95% |
Muut ominaisuudet |
---|
Yhteensopivat käyttöjärjestelmät | SCO Unix, OpenServer UnixWare v2.1, v7 Unix SVR 4.2 Unix QNX 4.25, QNX 6 Solaris 10 FreeBSD AIX 5.x HP-UX 11i Mac OS v10.3 Linux v2.4.x, v2.6.x |
Suunnittelu |
---|
Sertifiointi | CE, FCC |
Turvallisuus | UL, LVD |
Huomioi, että kuva on suuntaa-antava ja varsinainen tuote saattaa ulkoasultaan poiketa tuotekuvasta (esim. tietokoneisiin ei välttämättä sisälly näyttöä, vaikka kuvassa sellainen olisikin). Jos tuotenimikkeessä on eri tiedot kuin tuotekuvauksessa, tuotenimikkeen tieto on oikein. Jos jokin asia jää epäselväksi, lähetä sähköpostia tukeen ennen tuotteen tilaamista.
