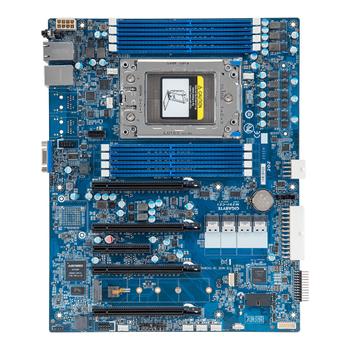

GIGABYTE AMD EPYC UP Server Board 7000 8-Ch DDR4

MZ01-CE1 (rev. 1.0)

• AMD EPYC™ 7000 series processor family
• 8-Channel RDIMM/LRDIMM DDR4, 8 x DIMMs
• 2 x 1Gb/s LAN ports (Intel® I210-AT)
• 1 x dedicated management port
• 4 x SlimSAS (for 16 x SATA 6Gb/s) ports
• Ultra-Fast M.2 with PCIe Gen3 x4 interface
• Up to 5 x PCIe Gen3 expansion slots
• Aspeed® AST2500 remote management controller

• ATX
• 305W x 244D (mm)

• AMD EPYC™ 7000 series processor family
• Single processor, 14nm
• Up to 32-core, 64 threads
• TDP up to 180W

• Socket SP3

• System on Chip

• 8 x DIMM slots
• DDR4 memory supported only
• 8-Channel memory architecture
• RDIMM modules up to 64GB supported
• LRDIMM modules up to 128GB supported
• Memory speed: 2666/2400/2133 MHz

• 2 x 1Gb/s LAN ports (Intel® I210-AT)
• 1 x 10/100/1000 management LAN

• Integrated in Aspeed® AST2500
• 2D Video Graphic Adapter with PCIe bus interface
• 1920x1200@60Hz 32bpp

• 4 x SlimSAS for 16 x SATA III 6Gb/s ports

• Slot_7 (PCIe_7): 1 x PCIe x16 (Gen3 x16 bus)
• Slot_5 (PCIe_5): 1 x PCIe x16 (Gen3 x16 bus)
• Slot_4 (PCIe_4): 1 x PCIe x8 (Gen3 x8 bus)
• Slot_3 (PCIe_3): 1 x PCIe x16 (Gen3 x16 bus)
• Slot_1 (PCIe_1): 1 x PCIe x16 (Gen3 x16 bus)


• 1 x M.2 slot:
  • M-key
  • PCIe Gen3 x4
  • Supports NGFF-2242/2260/2280/22110 cards

• 1 x 24-pin ATX main power connector
• 2 x 8-pin ATX 12V power connectors
• 4 x SlimSAS connectors
• 1 x M.2 slot
• 1 x CPU fan headers
• 6 x System fan headers
• 1 x USB 3.0 header
• 2 x COM headers
• 1 x TPM header
• 1 x Front panel header
• 1 x HDD back plane board header
• 1 x PMBus connector
• 1 x IPMB connector
• 1 x Clear CMOS jumper
• 1 x BIOS recovery jumper

• 2 x USB 3.0
• 1 x VGA
• 2 x RJ45
• 1 x MLAN
• 1 x ID switch with LED
• 1 x Power switch with LED

• 1 x TPM header with LPC interface

• Windows Server 2012 R2 (x64)
• Windows Server 2016
• Red Hat Enterprise Linux 7.4
• SUSE Linux Enterprise Server 11.4
• SUSE Linux Enterprise Server 12 .2
• Ubuntu 16.04
• Ubuntu 17.04
• VMware ESXi 6.5

• Aspeed® AST2500 management controller
• AMI MegaRAC SP-X Solution Web interface
• Dashboard
• JAVA Based Serial Over LAN
• HTML5 KVM
• Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
• Sensor Reading History Data
• FRU Information
• SEL Log in Linear Storage / Circular Storage Policy
• Hardware Inventory
• Fan Profile
• System Firewall
• Power Consumption
• Power Control
• LDAP / AD / RADIUS Support
• Backup & Restore Configuration
• Remote BIOS/BMC/CPLD Update
• Event Log Filter
• User Management
• Media Redirection Settings
• PAM Order Settings
• SSL Settings
• SMTP Settings

• 1 x 24-pin ATX main power connector
• 2 x 8-pin ATX 12V power connectors

• Operating temperature: 10°C to 40°C
• Operating humidity: 8-80% (non-condensing)
• Non-operating temperature: -40°C to 60°C
• Non-operating humidity: 20%-95% (non-condensing)

• 1 x MZ01-CE1
• 1 x I/O shield
• 1 x Quick start guide
• 2 x SlimSAS for 8 x SATAIII 6Gb/s cables
• Single Box dimensions: 360 x 330 x 80 mm
• Carton dimension: 674 x 424 x 385 mm
• Quantity: 10 x single box with one carton

• 10 x MZ01-CE1
• 1 x I/O shields
• Carton dimensions: 600 x 473 x 495 mm
